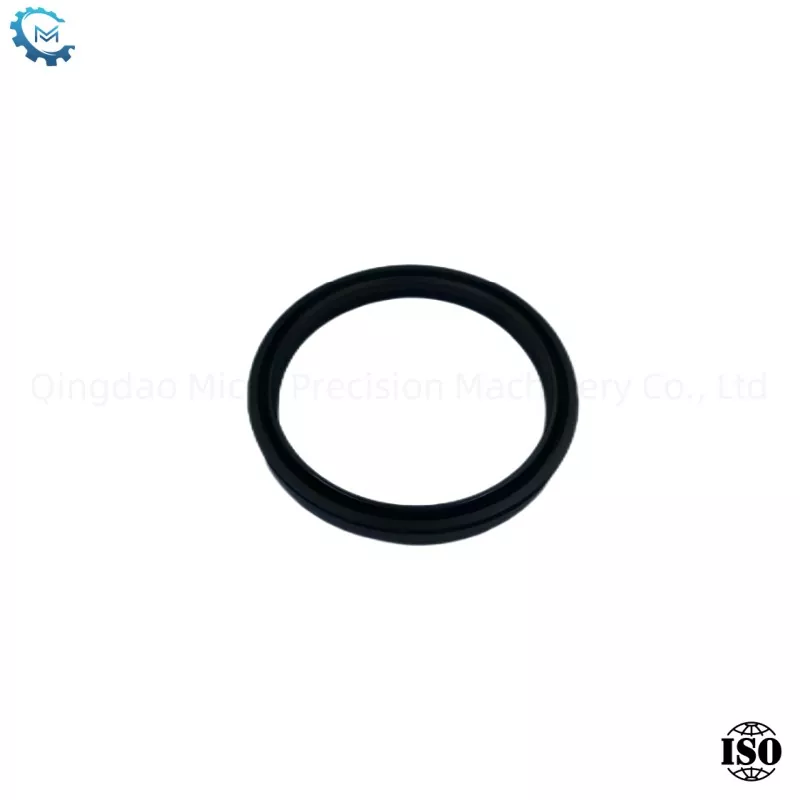

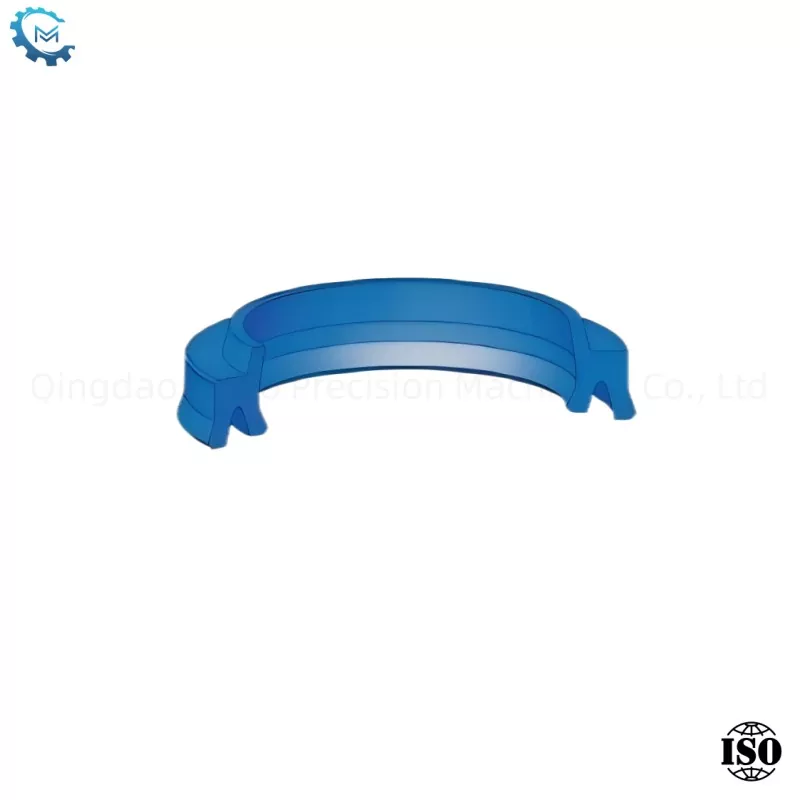

سریال MPMDHS حلقه گرد و غبار

پایان

rtmax (یک)

انگلستان (ام)

سطح لغزنده

≤2.5

0.1-0.5

شیار

6.3

≤1.6

شیار

≤15

≤3

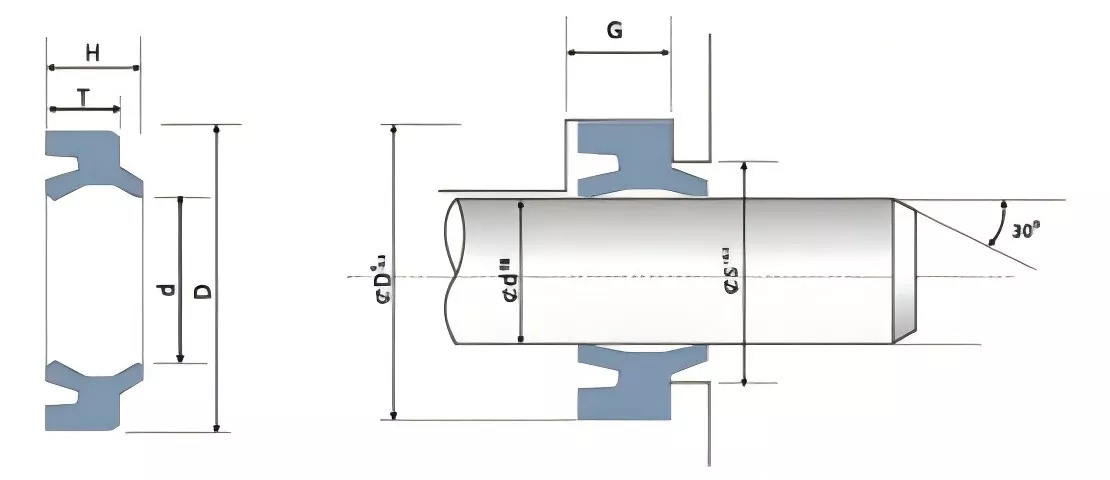

مدل

اندازه شیار

Ref. هیچ

φd

φd

φs

T

H

G

B

DHS0011b

11.2

19.2

15.5

4.5

6.0

5

2

DHS00012

12

20

16.3

4.5

6.0

5

2

DHS0012E

12.5

20.5

16.8

4.5

6.0

5

2

DHS00014

14

22

18.3

4.5

6.0

5

2

DHS00016

16

24

20.3

4.5

6.0

5

2

DHS00018

18

26

22.3

4.5

6.0

5

2

DHOS00020

20

28

24.3

4.5

6.0

5

2

DHS00022

22

30

26.3

4.5

6.0

5

2

DHS00022D

22.4

30.4

26.7

4.5

6.0

5

2

DHS00023E

23.5

31.5

27.8

4.5

6.0

5

2

DHS00025

25

33

29.3

4.5

6.0

5

2

DHS00028

28

36

32.3

4.5

6.0

5

2

DHOS00030

30

38

34

5

6.5

6

2

dhos00031e

31.5

39.5

35.5

5

6.5

6

2

DHS00032

32

40

36

5

6.5

6

2

DHOS00035

35

43

39

5

6.5

6

2

DHS00035s

35.5

43.5

39.5

5

6.5

6

2

DHOS00036

36

44

40

5

6.5

6

2

DHS00038

38

46

42

5

6.5

6

2

DHOS00040

40

48

44

5

6.5

6

2

DHOS00045

45

53

49

5

6.5

6

2

DHS00050

50

58

54

5

6.5

6

2

DHS00053

53

61

57

5

6.5

6

2

DHS00055

55

63

59

5

6.5

6

2

DHS00056

56

64

60

5

6.5

6

2

DHOS00060

60

68

64

5

6.5

6

2

DHOS00063

63

71

67

5

6.5

6

2

DHOS00065

65

73

69

5

6.5

6

2

DHS00067

67

75

70

5

6.5

6

2

DHS00070

70

80

75

6

8.0

7

3

DHS00071

71

81

76

6

8.0

7

3

DHOS00075

75

85

80

6

8.0

7

3

DHS00080

80

90

85

6

8.0

7

3

DHS00085

85

95

90

6

8.0

7

3

DHS00090

90

100

95

6

8.0

7

3

DHOS00095

95

105

100

6

8.0

7

3

DHS00098

98

108

103

6

8.0

7

3

DHS00100

100

110

105

6

8.0

7

3

DHS00105

105

115

110

6

8.0

7

3

DHS00110

110

120

115

6

8.0

7

3

DHS00112

112

122

117

6

8.0

7

4

DHS00115

115

125

120

6

8.0

7

4

DHS00120

120

130

125

6

8.0

7

4

DHS10120

120

133

127

7

9.5

8

4

DHS00125

125

138

132

7

9.5

8

4

DHS00130

130

143

137

7

9.5

8

4

DHS00136

136

149

143

7

9.5

8

4

DHS00140

140

153

147

7

9.5

8

4

DHS00145

145

158

152

7

9.5

8

4

DHS00150

150

164

158

7

9.5

8

4

DHS00160

160

174

168

7

9.5

8

4

DHS00165

165

179

173

7

9.5

8

4

DHS00170

170

184

178

7

9.5

8

4

DHS00180

180

193

187

7

9.5

8

4

DHS10180

180

194

188

7

9.5

8

4

DHS00185

185

198

192

7

9.5

8

5

DHS00190

190

203

197

7

9.5

8

5

DHS00200

200

213

207

7

9.5

8

5

DHS00200

200

214

208

7

9.5

8

5

DHS00204

204

248

212

7

9.5

8

5

DHS00210

210

223

217

7

9.5

8

5

DHS00220

220

233

227

7

9.5

8

5

DHS00230

230

244

238

7

9.5

8

5

DHS00250

250

263

257

7

9.5

8

5
